Battery Charger :Vas5906 Device Description
The :VAS5906 was developed especially for charging the vehicle electrical system while the vehicle is on display.
It supplies for automatic charging of 3 - 300 Ah for starter batteries.
The 14.4 V maximum charging voltage is not exceeded. All electrical consumers will be supported up to 30 A by the support charging.
After the Battery -A- is completely charged, the :VAS5906 switches into the maintenance charging for long-term operation.
The :VAS5906 starts automatically and does not need any adjustments. Only the charging terminals and the network cable need to be connected.
For more information. Refer to the :VAS5906 Operating Instructions.

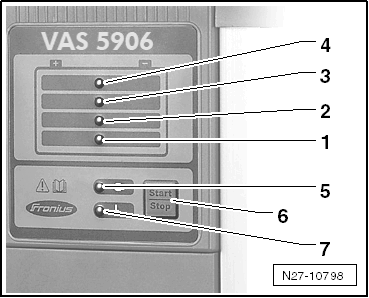

- 25% charge display
- 50% charge display
- 75% charge display
- 100% charge display
- Ready-to-use display
- Pushing the START/STOP and Setup buttons will stop and start the charging process. Enter into the setup menu and select characteristic line type (hold for 10 seconds)
- Display malfunction
