Overview - Rear Seat Belt Latch

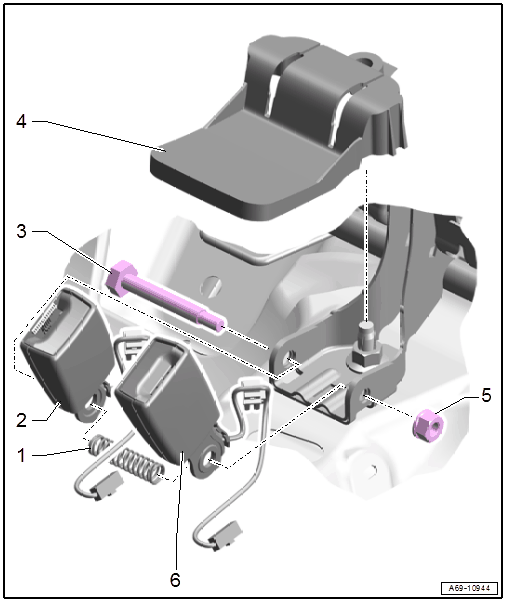

Fig 1: Exploded View Of Rear Seat Belt Latch

Courtesy of AUDI OF AMERICA, LLC

Pressure Spring
Right Seat Belt Latch
- With Passenger Side Rear Seat Belt Switch -E259-
- Removing and installing, refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Replace the seat belt latch if the belt tensioner has deployed with the belt on
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Cover
Nut
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Left Seat Belt Latch
- With Driver Side Rear Seat Belt Switch -E258-
- Removing and installing, refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Replace the seat belt latch if the belt tensioner has deployed with the belt on
