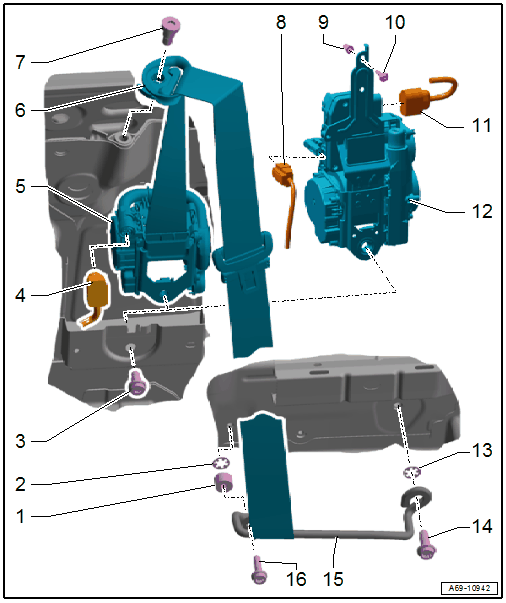

Overview - Front Three-Point Seat Belt
Courtesy of AUDI OF AMERICA, LLC
- Stop Sleeves
- Permanent, welded with the lock washer on the bolt
- Lock Washer
- Permanent, pushed on the bolt threads
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Connector
- Driver side: for Driver Seat Belt Tensioner Igniter 1 -N153-
- Front passenger side: for Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Automatic Belt Retractor
- Seat Belt Guide
- Must swing in carrier direction after tightening bolt
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Connector
- Driver side: for Driver Seat Belt Tensioner Igniter 1 -N153-
- Front passenger side: for Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Internally Threaded Pop Rivet
- Bolt
- Connector
- Driver side: for Left Front Seat Belt Tensioner Control Module -J854-
- For Right Front Seat Belt Tensioner Control Module -J855-
- Automatic Belt Retractor
- Driver side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Left Front Seat Belt Tensioner Control Module -J854-
- Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Right Front Seat Belt Tensioner Control Module -J855-
- Removing and installing, refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- After replacing the control module -J854- / -J855- the control module must be coded, refer to Vehicle Diagnostic Tester
- Lock Washer
- Permanent, pushed on the bolt threads
- Bolt
- 40 Nm
- Permanent, secured with the lock washer on the belt end fitting
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Belt End Fitting
- Bolt
- 20 Nm
- Permanent, secured with the lock washer on the belt end fitting
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
