Rear Three-Point Seat Belt, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Open convertible top.

-- Secure the convertible top compartment cover in the "open" position against unintentional closing, to do this the hinge must be pushed in the uppermost deviation point until stop -1- on the brace -2- -arrow-.

-- Remove the rear seat backrest, refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Remove the side trim panel, refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

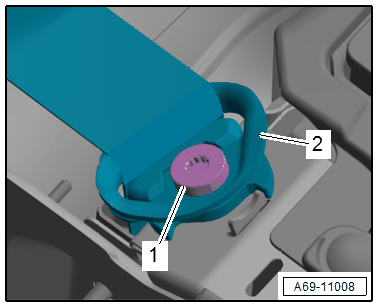

-- Remove the bolt -1- on the belt end fitting -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the side rear panel trim panel, refer to SIDE REAR PANEL TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat belt relay -2- and seat belt.

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the three-point seat belt -1- upward.
