Overview - Cover And Cushion, Standard Bench Seat

WARNING: This page is about a different variant/trim than selected.

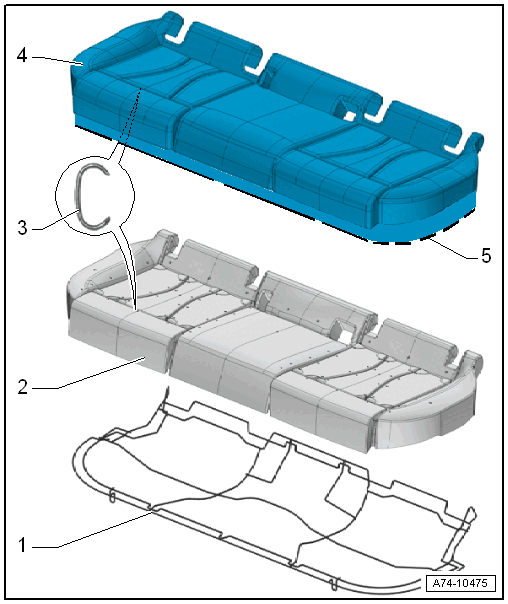

Fig 1: Exploded View Of Cover And Cushion, Standard Bench Seat

Courtesy of AUDI OF AMERICA, LLC

Seat Frame
Cushion
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
- Allocation. Refer to the Parts Information.
Upholstery Clip
- For securing the cover to the cushion
- Replace after removing.
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
Cover
- Vehicles with:
  - Fabric
  - Leather
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
- Allocation. Refer to the Parts Information.
- Check that there are no folds after installing
Molding
- Sewn into cover
- For engaging the cover to the seat frame
- Make sure it fits correctly in the seat frame
