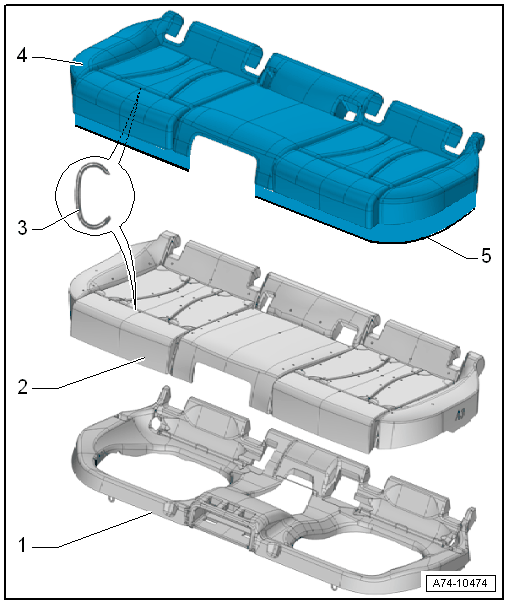

Overview - Cover And Cushion, Sport Bench Seat
WARNING: This page is about a different variant/trim than selected.
- Seat Frame
- With the molded piece
- Cushion
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
- Allocation. Refer to the Parts Information.
- Upholstery Clip
- For securing the cover to the cushion
- Replace after removing.
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
- Cover
- Vehicles with:
- Fabric
- Leather
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
- Allocation. Refer to the Parts Information.
- Check that there are no folds after installing
- Vehicles with:
- Clamping Strip
- Sewn into cover
- For attaching the cover to the seat frame
- Strip inward and engage in the groove in the molded piece
