Overview - Cover And Cushion, Rear Seat Backrest With A Pass-Through

WARNING: This page is about a different variant/trim than selected.

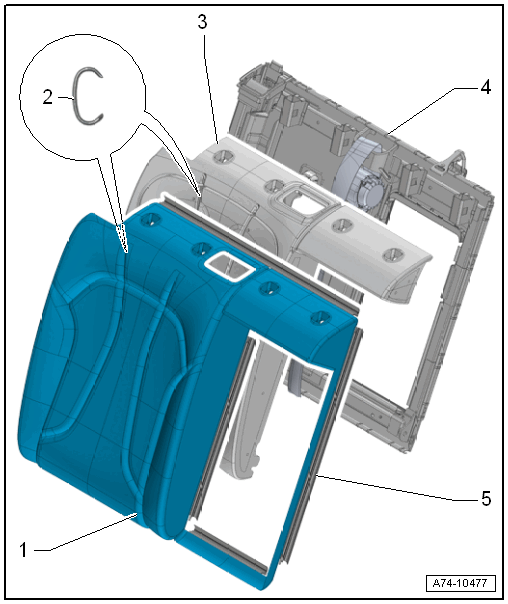

Fig 1: Exploded View Of Cover And Cushion, Rear Seat Backrest With A Pass-Through

Courtesy of AUDI OF AMERICA, LLC

Cover
Vehicles with:
- Fabric
- Leather
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .
- Allocation. Refer to the Parts Information.
- Check that there are no folds after installing
Upholstery Clip
- For securing the cover to the cushion
- Replace after removing.
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
Cushion
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .
- Allocation. Refer to the Parts Information.
Backrest Frame
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .
Clamping Strip
- Sewn into cover
- For attaching the cover to the backrest frame
