Cover And Cushion, Separating, Bench Seat: Removing

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bench seat / bucket seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

Standard Seat:

-- Disengage piping -3- of seat cover around the seat frame.

-- Disengage the piping -1- of seat cover from the opening for the seat belt latch.

-- Remove the cover -2- with the cushion from the seat frame.

Sport Seat:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center storage compartment. Refer to CENTER STORAGE COMPARTMENT, REMOVING AND INSTALLING .

CAUTION:

There is a risk of damaging the cover.

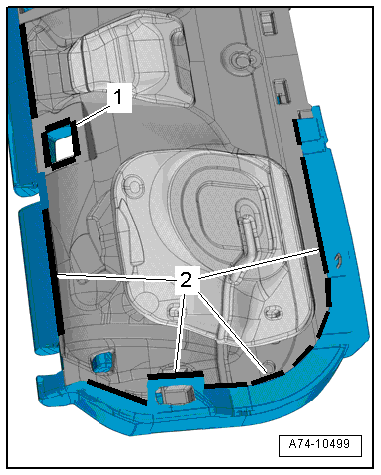

-- Pry the cover plastic clips -2- using the :3409 along the molded part seat frame.

-- Disengage the piping -1- of seat cover from the opening for the seat belt latch.

Continuation for all Seat Versions:

Courtesy of AUDI OF AMERICA, LLC

-- Pull off the cover -3- from the cushion -2- as far as possible and cut upholstery clips -1- using pliers.

-- Separate the cover and cushion.
