Cover And Cushion, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Remove the rear headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the locking mechanism trim. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .

-- Pry the clamping strips -1 and 2- for the cover with a screwdriver from the retainer -3-.

-- Unclip the outer bearing sleeve -1- from the rear seat backrest with the :T10383/1  -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the inner mounting pin. Refer to INNER MOUNTING PIN, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover clips -1- around the mounting pin from the backrest frame using a :3409  .

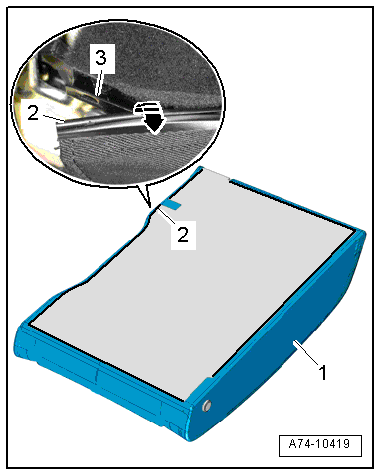

Rear Seat Backrest, 1/3 Left:

Courtesy of AUDI OF AMERICA, LLC

-- Starting at the locking mechanism, pry off the clamping strip -2- for the cover from the backrest frame using a screwdriver -3- -arrow-.

-- Remove the rear headrest guides. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .

-- Remove the cover -1- with the cushion from the backrest frame.

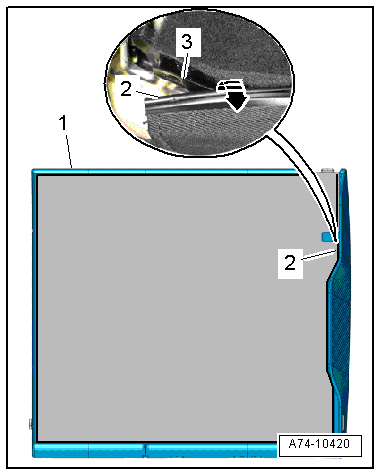

Right 2/3 Rear Seat Backrest without Pass-Through:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear center seat belt guide. Refer to REAR SEAT BELT GUIDE IN CENTER SEATING POSITION, REMOVING AND INSTALLING .

-- Starting at the locking mechanism, pry off the clamping strip -2- for the cover from the backrest frame using a screwdriver -3- -arrow-.

-- Remove the rear headrest guides. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .

-- Remove the cover -1- with the cushion from the backrest frame.

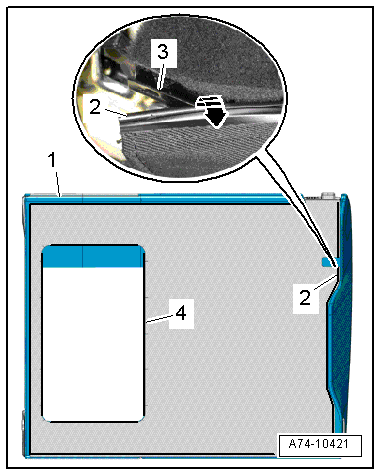

Right 2/3 Rear Seat Backrest with Pass-Through:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear center seat belt guide. Refer to REAR SEAT BELT GUIDE IN CENTER SEATING POSITION, REMOVING AND INSTALLING .

-- Remove the rear pass-through door with the rear center arm rest. Refer to PASS-THROUGH DOOR, REMOVING AND INSTALLING .

-- Remove the pass-through cover frame. Refer to PASS-THROUGH COVER FRAME, REMOVING AND INSTALLING .

-- Starting at the locking mechanism, pry off the clamping strip -2- for the cover from the backrest frame using a screwdriver -3- -arrow-.

-- Pry off the clamping strip -4- for the cover with a screwdriver from around the pass-through.

-- Remove the rear headrest guides. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .

-- Remove the cover -1- with the cushion from the backrest frame.
