Seat Pan Cover And Cushion, Removing And Installing, Standard Seat: Removing
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
- Pay attention to the safety precautions for the passenger occupant detection system for versions that have that system. Refer to ADDITIONAL SAFETY PRECAUTIONS - PASSENGER OCCUPANT DETECTION SYSTEM DEACTIVATION, MARKET-SPECIFIC .
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Equipment level with storage compartment: remove the storage compartment. Refer to STORAGE COMPARTMENT, REMOVING AND INSTALLING .
-- Remove the tunnel-side seat side trim. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .
-- Remove the seat side trim and bracket for the seat side trim on side sill.
- Front seat manual. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, MANUAL FRONT SEAT .
- Power front seat. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, POWER FRONT SEAT .
-- Versions with child seat anchor: remove the child seat anchor. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
-- If equipped: free up the seat heating wiring harness from the seat pan. Refer to FRONT SEAT WIRE ROUTING .
-- Remove the front backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING .

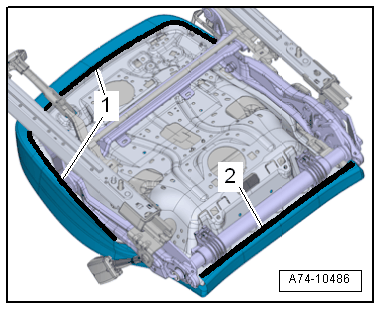

-- Detach the molding -1- from the seat cover in the front and side areas using the :3370 .
-- Detach the molding -2- of the cover in the rear area using the :3370 .
-- Carefully disengage the cushion -1- with cover -2- at the rear of the seat pan -arrows-.
-- Remove the cover and cushion from the seat pan, while doing so if necessary free up the seat heating wiring harness.
Passenger Seat, Country Specific:
Never disconnect the connector -3- from the Passenger Occupant Detection System Control Module -J706-.
-- Disconnect the connector -2- from the control module.
-- Free up the seat occupant sensor wire from the seat pan.
-- Guide the control module -1- through the opening -arrow- in the seat pan and remove with the seat cushion.
