Overview - Seat And Backrest Heating Element, Super-Sport Seat

WARNING: This page is about a different variant/trim than selected.

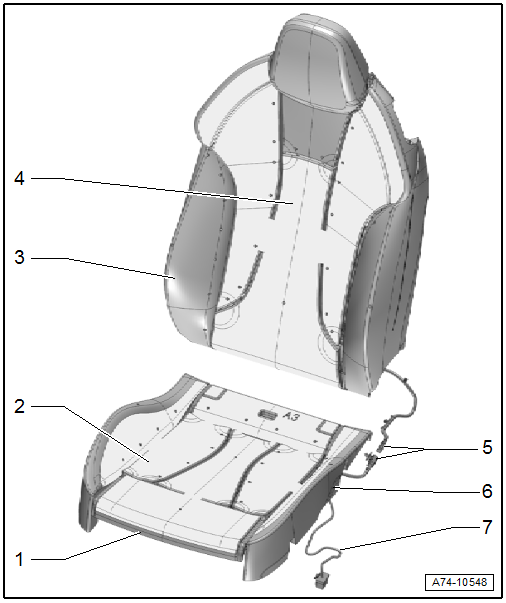

Fig 1: Exploded View Of Seat And Backrest Heating Element, Super-Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Cushion
- For the seat depth adjustment
- When replacing, apply a new heating element. Refer to DRIVER AND FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING, SPORT SEAT/SUPER SPORT SEAT .
- Allocation. Refer to the Parts Information.
Heating Element Driver Seat Heating Element -Z6-
- Front passenger side: Front Passenger Seat Heating Element -Z8-
- Allocation. Refer to the Parts Information.
- Replacing. Refer to DRIVER AND FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING, SPORT SEAT/SUPER SPORT SEAT .
Cushion
- When replacing, apply a new heating element. Refer to DRIVER/FRONT PASSENGER BACKREST HEATING ELEMENT -Z7- / -Z9-, REMOVING AND INSTALLING, SUPER SPORT SEAT .
- Allocation. Refer to the Parts Information.
Heating Element Driver Backrest Heating Element -Z7-
- Front passenger side: Front Passenger Backrest Heating Element -Z9-
- Allocation. Refer to the Parts Information.
- Replacing. Refer to DRIVER/FRONT PASSENGER BACKREST HEATING ELEMENT -Z7- / -Z9-, REMOVING AND INSTALLING, SUPER SPORT SEAT .
Wire
Cushion
- Allocation. Refer to the Parts Information.
Wire
