Overview - Seat And Backrest Heating Element, Standard Seat With Leather Cover

WARNING: This page is about a different variant/trim than selected.

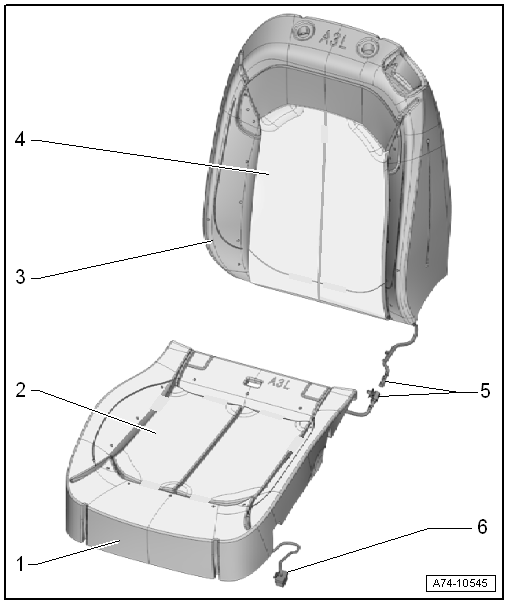

Fig 1: Exploded View Of Seat And Backrest Heating Element, Standard Seat With Leather Cover

Courtesy of AUDI OF AMERICA, LLC

Seat Cushion
- When replacing, apply a new heating element. Refer to DRIVER/FRONT PASSENGER SEAT HEATING ELEMENT - Z6- / - Z8-, REMOVING AND INSTALLING, STANDARD SEAT .
- Allocation. Refer to the Parts Information.
Heating element Driver Seat Heating Element -Z6-
- Front passenger side: Front Passenger Seat Heating Element -Z8-
- Allocation. Refer to the Parts Information.
- Replacing. Refer to DRIVER/FRONT PASSENGER SEAT HEATING ELEMENT - Z6- / - Z8-, REMOVING AND INSTALLING, STANDARD SEAT .
Backrest Cushion
- When replacing, apply a new heating element. Refer to DRIVER/FRONT PASSENGER BACKREST HEATING ELEMENT -Z7- / -Z9-, REMOVING AND INSTALLING, STANDARD SEAT .
- Allocation. Refer to the Parts Information.
Heating element Driver Backrest Heating Element -Z7-
- Front passenger side: Front Passenger Backrest Heating Element -Z9-
- Allocation. Refer to the Parts Information.
- Replacing. Refer to DRIVER/FRONT PASSENGER BACKREST HEATING ELEMENT -Z7- / -Z9-, REMOVING AND INSTALLING, STANDARD SEAT .
Wire
Wire
