Overview - Backrest Cover And Cushion, Standard Seat

WARNING: This page is about a different variant/trim than selected.

NOTE:

The illustration shows a version with leather cover and backrest release lever.

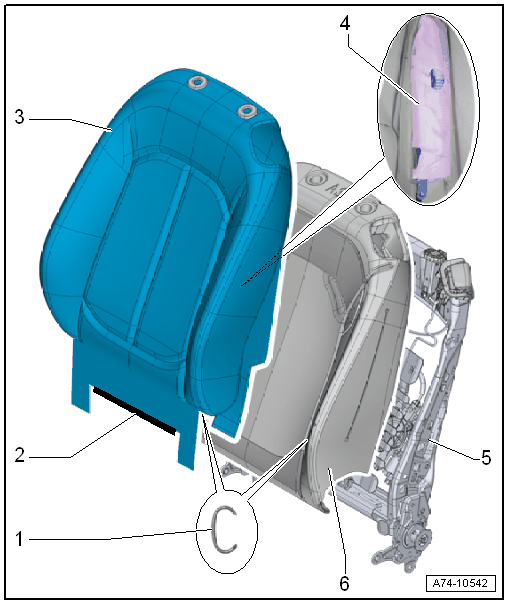

Fig 1: Exploded View Of Backrest Cover And Cushion

Courtesy of AUDI OF AMERICA, LLC

Upholstery Clip
- For securing the cover to the cushion
- Replace after removing.
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
Molding
- Sewn into cover
- For attaching the cover to the backrest frame
- Make sure it fits correctly inside the backrest frame
Cover
- Vehicles with:
  - Fabric
  - Leather
- Allocation. Refer to the Parts Information.
- Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
Opening
- For thorax airbag
- Sewn into cover
Backrest Frame
Cushion
- Allocation. Refer to the Parts Information.
- Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to DRIVER/FRONT PASSENGER BACKREST HEATING ELEMENT -Z7- / -Z9-, REMOVING AND INSTALLING, STANDARD SEAT .
