Driver/Front Passenger Backrest Heating Element -Z7- / -Z9-, Removing And Installing, Super Sport Seat: Procedure
WARNING: This page is about a different variant/trim than selected.
-- Separate the cover and cushion. Refer to BACKREST COVER AND CUSHION, SEPARATING .

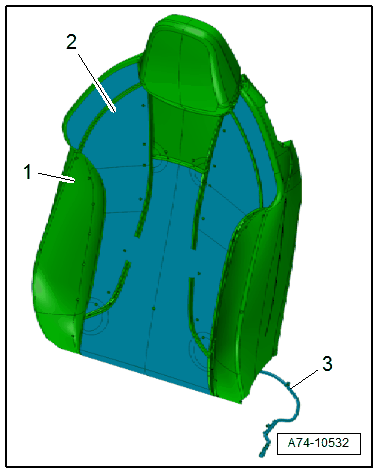

-- Cut the wire -3- directly from the old heating element -2-.
NOTE:
The old seat heating element remains on the padding -1- and the new seat heating element is bonded over it.
-- Align the new heating element on the cushion.
-- Peel the protective film off the heating element. Be careful not to damage the heating element.
-- Bond heating elements so that they align with the old heating elements and are free of wrinkles.
Further installation is the reverse order of removal.
