Driver And Front Passenger Seat Heating Element -Z6- / -Z8-, Removing And Installing, Sport Seat/Super Sport Seat: Procedure
-- Separate the cover and cushion. Refer to SEAT PAN COVER AND CUSHION, SEPARATING, SPORT SEAT/SUPER SPORT SEAT .
Fabric Cover:

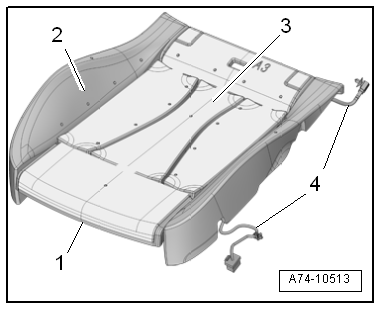

-- Cut the wire -4- directly from the old heating element -3-.
The old heating elements remain on the cushion -1 and 2- and will be covered over by the new heating elements.
-- Align the new heating elements on the cushion.
-- Remove the protective films from the heating elements in succession, taking care not to damage the heating elements.
-- Bond heating elements so that they align with the old heating elements and are free of wrinkles.
-- Route the connecting wires to the individual heating elements in the base of the gaps.
Leather Cover:

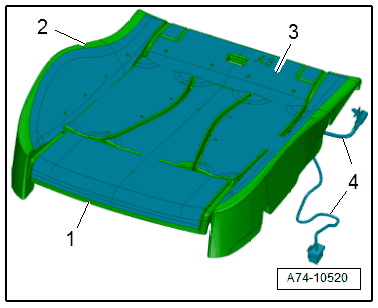

-- Cut the wire -4- directly from the old heating element -3-.
The old heating elements remain on the cushion -1 and 2- and will be covered over by the new heating elements.
-- Align the new heating elements on the cushion.
-- Remove the protective films from the heating elements in succession, taking care not to damage the heating elements.
-- Bond heating elements so that they align with the old heating elements and are free of wrinkles.
-- Route the connecting wires to the individual heating elements in the base of the gaps.
Further installation is the reverse order of removal.
