Backrest Cover And Cushion, Removing And Installing, Standard/Sport Seat: Installing
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, connecting a connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
- Follow all the instructions when installing the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
Install in reverse order of removal and note the following:

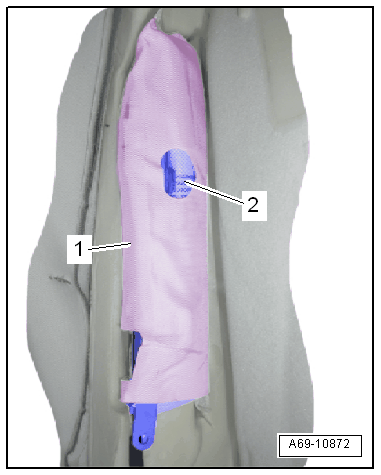

-- Place the thorax airbag -2- in the pocket sewn into the cover -1-, engage in the backrest frame and secure.
