Component Location Overview - Heater Control Module -J65- Display And Control Head
WARNING: This page is about a different variant/trim than selected.

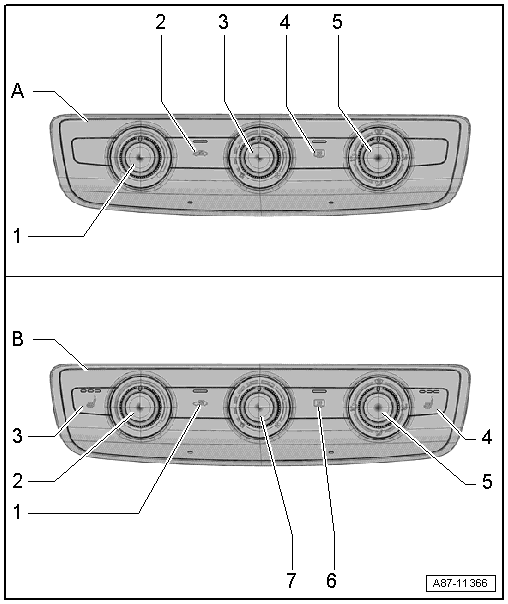

The Heater Control Module -J65-
- A - Heater Control Module -J65- Control Head for Vehicles without Seat Heating
- 1 - Temperature Setting Regulator
- 2 - Recirculating Air Mode Button
- Illuminated LED indicates the "recirculating air mode" function is selected.
- The "recirculated-air mode" function is canceled when setting the air distribution to "Defrost" (air to the windshield).
- 3 - Knob for Fresh Air Blower -V2-
- 4 - Rear Window Defogger Button
- The "Rear window defogger on" function is selected when the LED is on.
- By pressing and holding the button the rear window defogger can be continuously switched on Rear Window Defogger -Z1-, CHECKING
- 5 - Air Distribution Knob
- Different versions (with different symbols). Refer to the Parts Information.
- B - Heater Control Module -J65- Control Head for Vehicles with Seat Heating
- 1 - Recirculating Air Mode Button
- Illuminated LED indicates the "recirculating air mode" function is selected.
- The "recirculated-air mode" function is canceled when setting the air distribution to "Defrost" (air to the windshield).
- 2 - Temperature Setting Regulator
- 3 - Left Seat Heating Button
- Illuminated LED indicates the level selected.
- The selected setting can be set back one unit after a pre-set time. Refer to FRONT SEAT HEATING, CHECKING .
- 4 - Right Seat Heating Button
- Illuminated LED indicates the level selected.
- The selected setting can be set back one unit after a pre-set time. Refer to FRONT SEAT HEATING, CHECKING .
- 5 - Air Distribution Knob
- Different versions (with different symbols). Refer to the Parts Information.
- 6 - Rear Window Defogger Button
- The "Rear window defogger on" function is selected when the LED is on.
- By pressing and holding the button the rear window defogger can be continuously switched on Rear Window Defogger -Z1-, CHECKING
- 7 - Knob for Fresh Air Blower -V2-
