Vehicle Interior At Front Right

WARNING: This page is about a different variant/trim than selected.

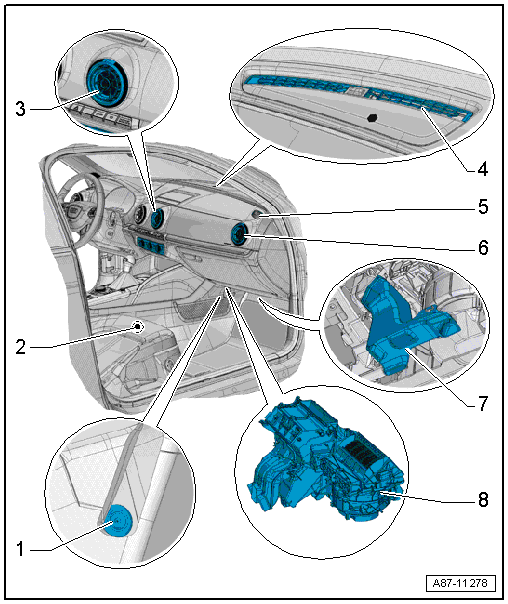

Fig 1: Heating And Ventilation Components Location (Right Front Passenger Compartment)
GWWA87-11278Courtesy of AUDI OF AMERICA, LLC
  1. Plugs
    • In the underbody instead of condensation water drain on vehicles with A/C system
  2. Right Front Seat
    • Equipment version with seat heating
    • There are different versions. Refer to the Parts Information.
    • Information about seat heating function. Refer to SEAT HEATING .
    • Check the activation and function of the seat heating using the :Vehicle Diagnostic Tester  in "Guided Fault Finding" function and refer to Wiring Diagram.
    • Seat Heating, Servicing. Refer to FRONT SEAT COVERS AND CUSHIONS .
  3. Right Instrument Panel Center Vent
  4. Instrument Panel Windshield Vent
  5. Right Instrument Panel Side Vent
  6. Right Instrument Panel Vent
  7. Right Footwell Vent
  8. Heater
