Left Front Passenger Compartment

WARNING: This page is about a different variant/trim than selected.

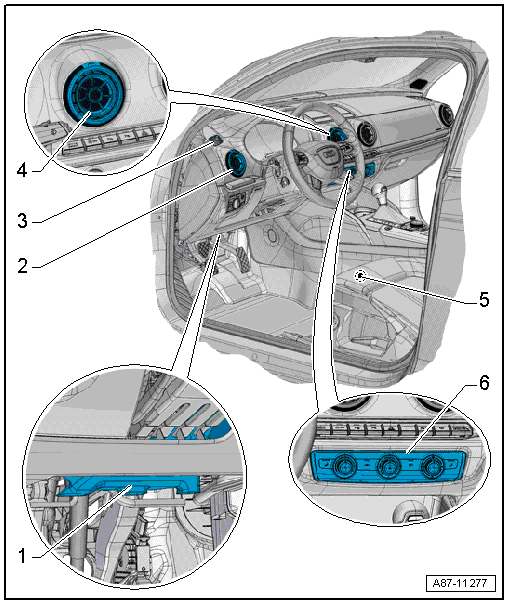

Fig 1: Heating And Ventilation Components Location (Components Inside Front Passenger Compartment)

Courtesy of AUDI OF AMERICA, LLC

Left Footwell Vent
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT .
Left Instrument Panel Vent
- For vehicles without an automatic A/C system, with sealing plugs instead of a vent temperature sensor
- A loose or missing sealing plug causes flow-generated noise.
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT .
Left Instrument Panel Side Vent
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT .
Left Instrument Panel Center Vent
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT .
Left Front Seat
- Equipment version with seat heating
- There are different versions. Refer to the Parts Information.
- Information about seat heating function. Refer to SEAT HEATING .
- Check the activation and function of the seat heating using the Vehicle Diagnostic Tester in "Guided Fault Finding" function and refer to Wiring Diagram.
- Seat Heating, Servicing. Refer to Front Seat Covers and Cushions .
Heater Control Module -J65- Control Head
- There are different versions. Refer to the Parts Information.
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function. Refer to Wiring Diagram.
- Removing and Installing. Refer to Heater Control Module -J65- /A/C Control Module -J301- /Climatronic Control Module -J255-, REMOVING AND INSTALLING .
