Undamaged Rear Window, Removing, Sedan

• The >>D-pillar trim<< is removed.
• The high-mounted brake lamp is removed.

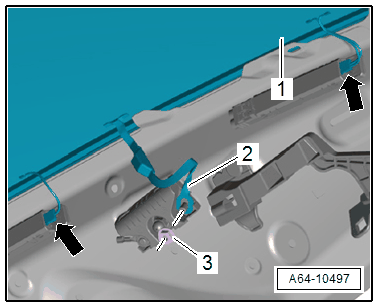

-- Remove the nut -3- for the rear window defroster electrical connector and wire -2- from the threaded pin and secure to center of window with adhesive tape.

-- Tighten the nut to 9 Nm when installing.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the window antenna connectors -arrows- secure to center of window with adhesive tape.

-- Unroll with the :VAS6452/1  approximately 6.5 meters (7.1 yards) of cutting wire (approximately six turns) and cut it.

-- To prevent any damage, cover the area where the awl comes out at the bottom of the body flange with adhesive tape -1-

Courtesy of AUDI OF AMERICA, LLC

-- Thread both cutting wire ends -3- into the awl -2- and pull it toward the inside.

• The wire ends must not be twisted on the adhesive bead pass-through -arrow-.

-- Place the cutting wire all the way around under the rear window as illustrated.

Courtesy of AUDI OF AMERICA, LLC

-- Route the cutting wire around the rear window under the window glass as shown.

-- Mount both reel devices on the inside of the windshield as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the cutting wire end -1- into the reel device -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Tension the cutting wire using the spool -1- and insert the plastic film -2- taken from the :VAS6452  to protect the wire and the rear shelf.

Courtesy of AUDI OF AMERICA, LLC

-- Cut the first section free. This will guide the wire into the integrated idler roller -arrow- on the reel device.

Courtesy of AUDI OF AMERICA, LLC

-- Insert an additional guide awl -2- into the adhesive bead and secure it to the windshield with the suction cup as shown to make sure that the wire runs as close to the windshield as possible.

Courtesy of AUDI OF AMERICA, LLC

-- Move the reel device and the guide awl as shown and cut free the section along the >>D-pillar<<.

Courtesy of AUDI OF AMERICA, LLC

-- Move the reel device and guide awl as shown.

-- Continue cutting the window glass free until about the center of the window glass is reached.

Courtesy of AUDI OF AMERICA, LLC

-- Use the second reel device to cut the lower section of the window glass free.

Courtesy of AUDI OF AMERICA, LLC

-- Move the reel device upward and insert the guide awl as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Cut the window glass out by moving upward along the >>D-pillar<<.

Courtesy of AUDI OF AMERICA, LLC

-- Move the reel device over the center of the window glass and over the first reel device as shown and cut free the window glass along the top.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the window glass with suction lifters.
