Overview - Rear Window, Sedan

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

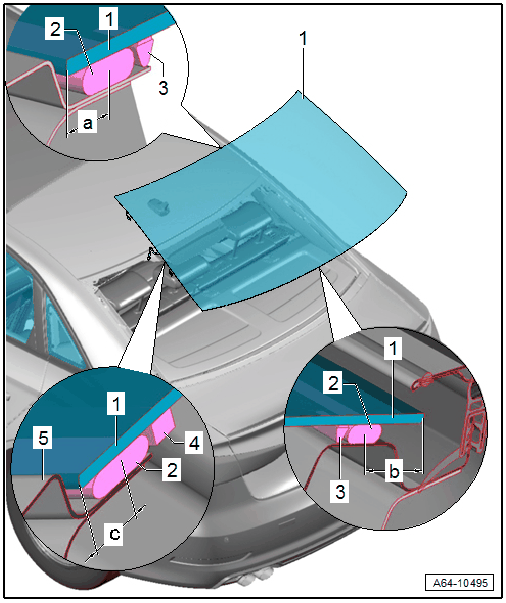

Fig 1: Exploded View Of Rear Window, Sedan

Courtesy of AUDI OF AMERICA, LLC

1. Rear Window
   • Before removing, disconnect or remove all connectors and secure the terminals to the middle of the window on the inside using adhesive tape.
   • Removing and Installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
2. Adhesive Bead
   • Pay attention to the distance to the window edge.
   • Dimension - -a- - = 12 mm
   • Dimension - -b- - = 24 mm
   • Dimension - -c- - = 10 mm
3. Spacer
   • No replacement part
4. Adhesive Stop Profile
   • Bond the adhesive stop profile directly by the rear window defroster bus bar.
   • Window adhesive must not touch bus bar for rear window defroster.
5. Body Flange
