Overview - Rear Window, A3 And SPORTBACK

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

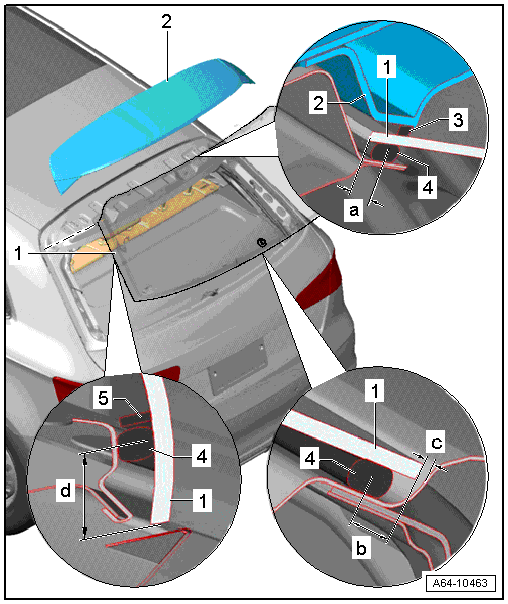

Fig 1: Exploded View Of - Rear Window, A3 And Sportback

Courtesy of AUDI OF AMERICA, LLC

1. Rear Window
   • Removing and Installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
   • Before removing, disconnect all the connectors and secure the contacts toward the inside to the middle of the window glass using adhesive tape.
2. Roof Spoiler
   • Removed. Refer to SPOILER, REMOVING AND INSTALLING .
3. Adhesive Bead
   • Bead width = 8 mm ^{± 2 mm}
   • Bead height = 12 mm ^{+ 2 mm}
   • Distances to the window edge
     • Dimension -a- = 8 mm
     • Dimension -b- = 11 mm
     • Dimension -c- = 2.2 mm
     • Dimension -d- = 33 mm
4. Spacer
