Overview - Rear Door Window

WARNING: This page is about a different variant/trim than selected.

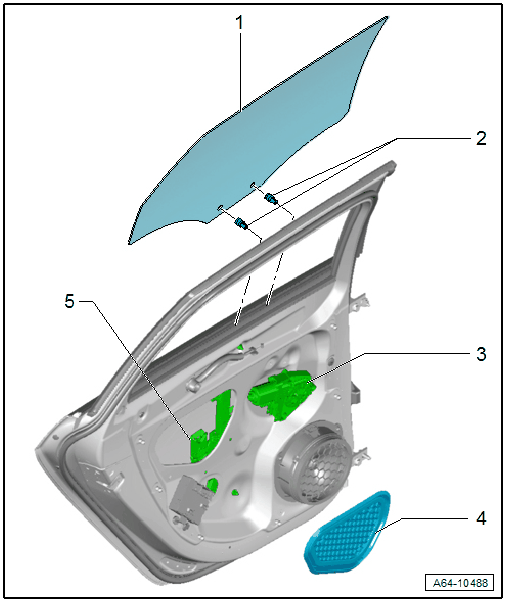

Fig 1: Exploded View Of Rear Door Window

Courtesy of AUDI OF AMERICA, LLC

Door Window
- Removing and Installing. Refer to REAR DOOR WINDOW, REMOVING AND INSTALLING
Pin
- Two-part with clamping pin
- Pins can be re-used.
Driver Side Rear Window Regulator Motor Control Module -J1016-
- Equipped on some models
- Removing and Installing. Refer to Driver Side Rear Window Regulator Motor Control Module -J1016- AND Front Passenger Side Rear Window Regulator Motor Control Module -J1017-, REMOVING AND INSTALLING
Cover
- Installed
Window Regulator
- The window regulator remains installed inside the door.
