Defroster Vent Air Duct: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn the ignition on.
-- Move the front seats to the rearmost position and extend the MMI display. Refer to Infotainment/MMI Operating Manual.
-- Turn off the ignition.
-- Remove The Instrument Panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

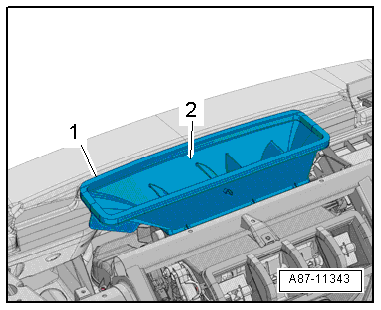

-- Remove the air guide -2- upward.
