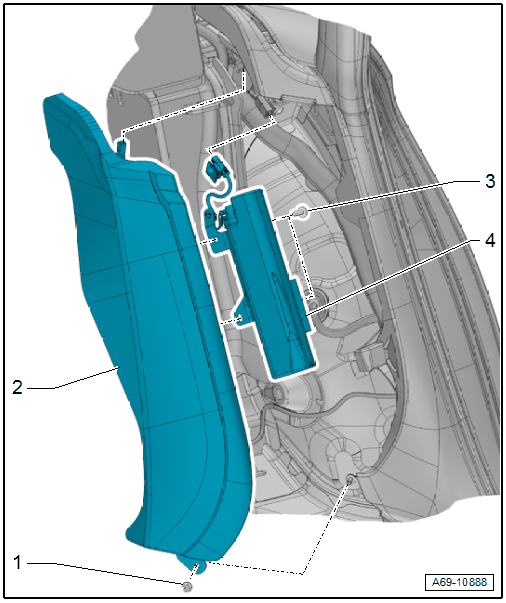

Overview - Rear Thorax Airbag
WARNING: This page is about a different variant/trim than selected.
- Nut
- 9 Nm
- Side Cushion
- Removing and Installing. Refer to REAR SIDE PADDING WITH THORAX AIRBAG, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Replace after removing.
- Rear Thorax Airbag
- Driver side: with Driver Side Rear Thorax Airbag Igniter -N201-
- Passenger side: with Passenger Side Rear Thorax Airbag Igniter -N202-WARNING:
Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and Installing. Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
