Seat Belt Height Adjuster, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

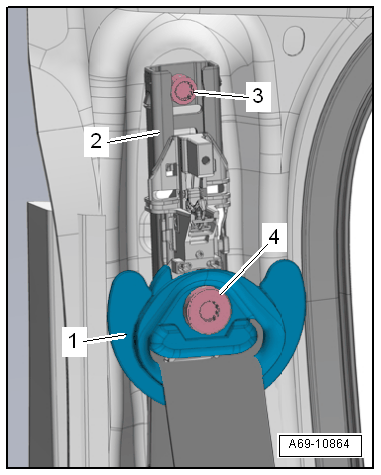

-- Press button for seat belt height adjuster and move the slide for seat belt height adjustment into the lowest position.
-- Remove the B-pillar trim. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Set aside the B-pillar trim with the seat belt webbing still threaded through it.
-- Remove the bolt -4-.
-- Remove the seat belt relay -1- with the seat belt webbing.
-- Remove the bolt -3-.
-- Remove the seat belt height adjuster -2- upward from the B-pillar.
