Outer Rear Three-Point Seat Belt, Removing And Installing, Sedan: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

-- Remove the rear sill trim. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Remove the bolt -1- on the belt end fitting -2-.

-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

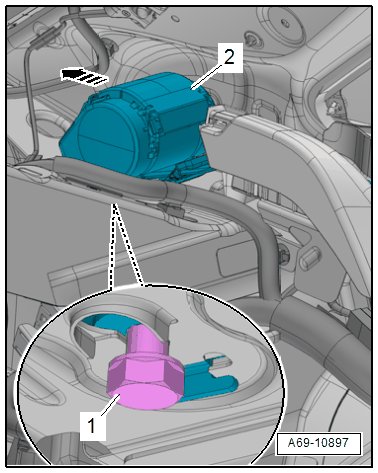

-- Vehicle versions with belt tensioner: open the connector lock -2- with a small screwdriver -arrow- and disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -1- approximately five turns.

Courtesy of AUDI OF AMERICA, LLC

-- Push the three-point seat belt -2- toward the rear -arrow- and remove it from the mount.
