Rear Seat Belt Latch, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

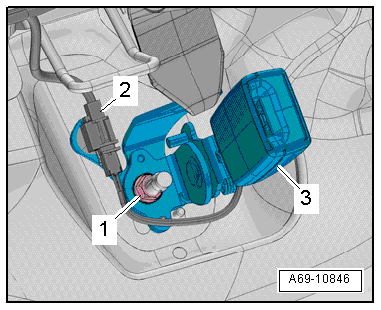

Right Seat Belt Latch with Rear Center Belt End Fitting:
-- If equipped, disconnect the connector -2- for the belt switch.
-- Remove the nut -1-.
-- Remove the seat belt latch -3- with the belt end fitting.

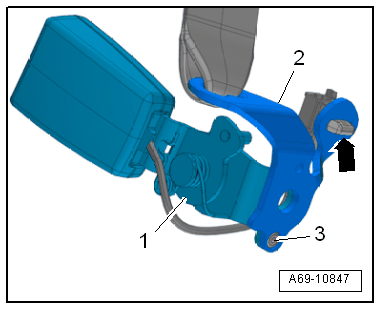

-- If equipped, unclip the connector -arrow- for the seat belt latch on the belt anchor.
WARNING:
Risk of eye injury.
- Wear protective eyewear!
-- Drill out the rivet -3-.
-- Remove the seat belt latch -1- from the belt anchor -2-.

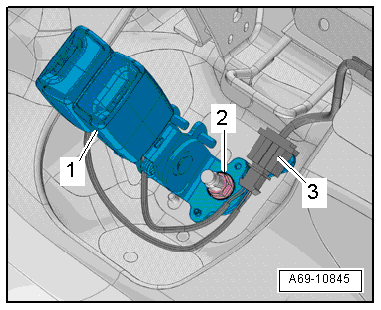

Center and Left Seat Belt Latch:
-- If equipped, disconnect the connector -3- for the belt switch.
-- Remove the nut -2-.
-- Remove the seat belt latches -1-.
