Rear Seat Belt Guide, Removing And Installing, A3: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
CAUTION:

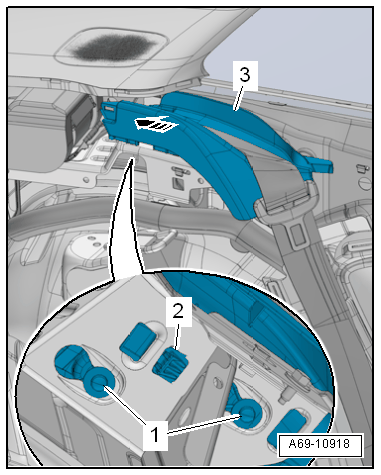

- Do not rotate bolts -3- under any circumstances when removing and installing belt guide -1-. They are set by the manufacturer.
- Replace the entire seat belt guide if damaged.
-- Push the belt guide retaining hook -2- upward and hold it there.
-- Slide the belt guide -arrow- back until the bolt heads -1- can be disengaged from the bracket on the body.
-- Thread the seat belt webbing out and remove the seat belt guide.
