Rear Seat Belt Guide In Center Seating Position, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

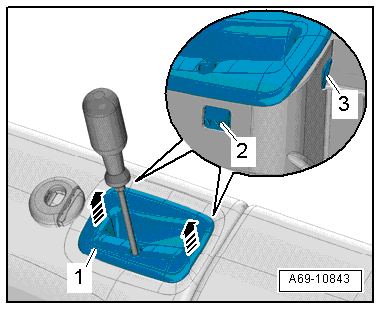

GWWA69-10843Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -2, and 3- with a screwdriver.

-- at the same time unclip the belt guide -1- upward -arrows-.

-- Open the gap on the belt guide and thread out the belt.
