Rear Outer Seat Belt Guide, Removing And Installing, Sedan: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .
-- Remove the rear sill trim. Refer to SILL PANEL, REMOVING AND INSTALLING .
CAUTION:

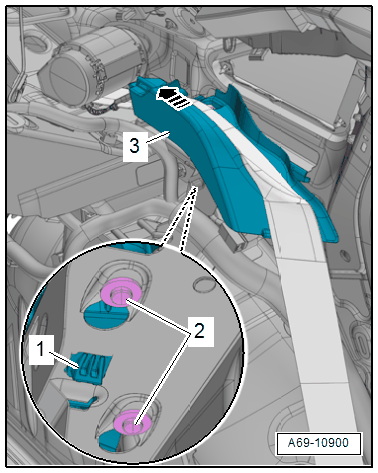

- Do not rotate bolts -2- under any circumstances when removing and installing belt guide -3-. They are set by the manufacturer.
- Replace the entire seat belt guide if damaged.
-- Push the seat belt guide retaining hook -1- upward and hold it there.
-- Slide the seat belt guide -arrow- toward the rear until the bolt heads -2- can be disengaged from the bracket on the body.
-- Thread the seat belt webbing out and remove the seat belt guide.
