Overview - Rear Outer Three-Point Seat Belt, Market-Specific

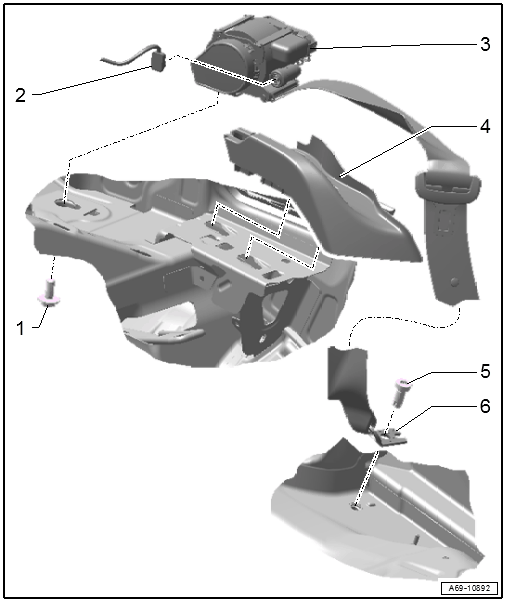

Fig 1: Exploded View Of Rear Outer Three-Point Seat Belt, Market-Specific

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
2. Connector
   • Driver side: for Driver Side Rear Seat Belt Tensioner Igniter -N196-
   • Passenger side: for Passenger Side Rear Seat Belt Tensioner Igniter -N197-
3. Automatic Belt Retractor
   • Driver side: with Driver Side Rear Seat Belt Tensioner Igniter -N196-
   • Passenger side: with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
   • Removing and Installing. Refer to OUTER REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING, SEDAN .
4. Belt Guide
   CAUTION:

   • Do not rotate bolts under any circumstances when removing and installing belt guide. They are set by the manufacturer.
   • Replace the entire seat belt guide if damaged.
   • Removing and Installing. Refer to REAR OUTER SEAT BELT GUIDE, REMOVING AND INSTALLING, SEDAN .
   • Insert in the guides on the bracket with the bolt heads and pull forward until the catches engage audibly
5. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
6. Outer Rear Belt End Fitting
   • Removing and Installing. Refer to OUTER REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING, SEDAN .
