Overview - Front Three-Point Seat Belt, Market-Specific

WARNING: This page is about a different variant/trim than selected.

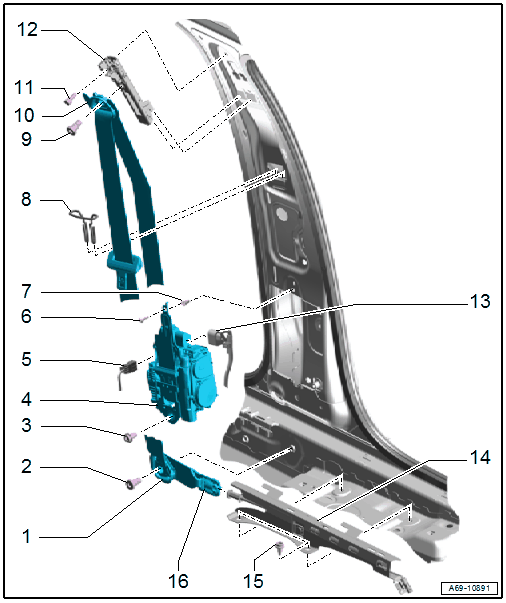

Fig 1: Exploded View Of Front Three-Point Seat Belt, Market-Specific
GWWA69-10891Courtesy of AUDI OF AMERICA, LLC
  1. Seat Belt Guide
    • Must swing into vertical position or carrier direction by itself after tightening the screw.
  2. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  3. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  4. Automatic Belt Retractor
    • Driver Side: with Driver Seat Belt Tensioner Igniter 1 -N153-, Driver Belt Force Limiter -G551- and Left Front Seat Belt Tensioner Control Module -J854-
    • Passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154-, Front Passenger Belt Force Limiter -G552- and Right Front Seat Belt Tensioner Control Module -J855-
    • Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING, MARKET-SPECIFIC .
    • After replacing the Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855-, the control module must be coded using the Vehicle Diagnostic Tester.
  5. Connector
    • Drivers side: for Driver Seat Belt Tensioner Igniter 1 -N153- and Driver Belt Force Limiter -G551-
    • Front passenger side for Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Front Passenger Belt Force Limiter -G552-
  6. Bolt
    • 4 Nm
  7. Pop Rivet Nut
    • Riveted in the b-pillar.
  8. Front Seat Belt Guide
  9. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  10. Seat Belt Guide
    • Must swing into vertical position or carrier direction by itself after tightening the screw.
  11. Bolt
    • 27 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  12. Seat Belt Height Adjuster
  13. Connector
    • Driver side: for Left Front Seat Belt Tensioner Control Module -J854-
    • For Right Front Seat Belt Tensioner Control Module -J855-
  14. Driver Seat Belt Tensioner Igniter 2 -N297-
  15. Bolt
    • 20 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
    • Quantity: 2
  16. Belt End Fitting
