Overview - Front Three-Point Seat Belt, A3

WARNING: This page is about a different variant/trim than selected.

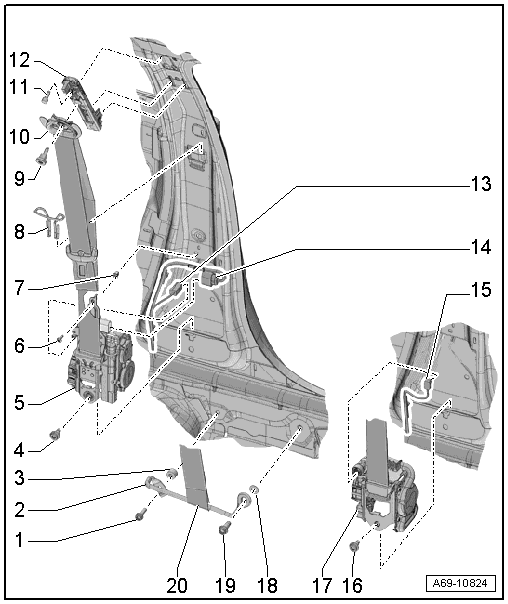

Fig 1: Exploded View Of Front Three-Point Seat Belt, A3
GWWA69-10824Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 20 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  2. Belt End Fitting
  3. Stop Sleeves
  4. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  5. Automatic Belt Retractor
    • Vehicles with an electric seat belt tensioner
    • Driver side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Left Front Seat Belt Tensioner Control Module -J854-
    • Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Right Front Seat Belt Tensioner Control Module -J855-
    • Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
    • After replacing the Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855-, the control module must be coded using the Vehicle Diagnostic Tester.
  6. Bolt
    • 2 Nm
    • Only for vehicles with an electric seat belt tensioner
  7. Expanding Nut
    • Clipped in the B-pillar
  8. Front Seat Belt Guide
  9. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  10. Seat Belt Guide
    • Must swing into vertical position or carrier direction by itself after tightening the screw.
  11. Bolt
    • 27 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  12. Seat Belt Height Adjuster
  13. Connector
    • Driver side: for Driver Seat Belt Tensioner Igniter 1 -N153-
    • Front passenger side: for Front Passenger Seat Belt Tensioner Igniter 1 -N154-
  14. Connector
    • Driver side: for Left Front Seat Belt Tensioner Control Module -J854-
    • For Right Front Seat Belt Tensioner Control Module -J855-
  15. Connector
    • Driver side: for Driver Seat Belt Tensioner Igniter 1 -N153-
    • Front passenger side: for Front Passenger Seat Belt Tensioner Igniter 1 -N154-
  16. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  17. Automatic Belt Retractor
    • Vehicles without an electric seat belt tensioner.
    • Driver side: with Driver Seat Belt Tensioner Igniter 1 -N153-
    • Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154-
    • Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
  18. Washer
  19. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  20. Belt Loop
