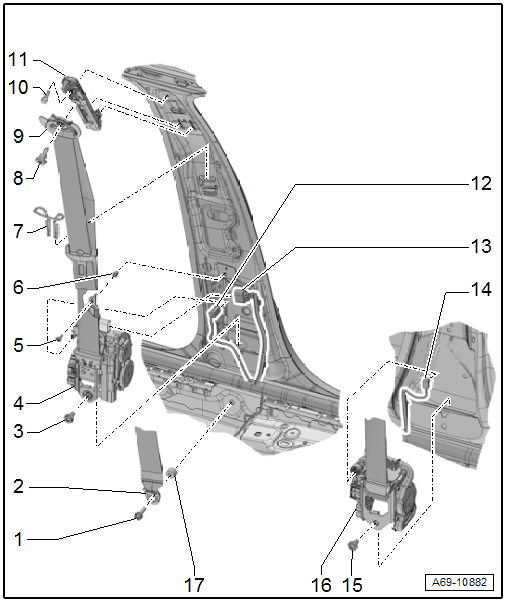

Overview - Front Three-Point Seat Belt, A3 SPORTBACK/Sedan
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Belt End Fitting
- Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Automatic Belt Retractor
- Vehicles with an electric seat belt tensioner
- Driver side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Left Front Seat Belt Tensioner Control Module -J854-
- Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Right Front Seat Belt Tensioner Control Module -J855-
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- After replacing the Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855-, the control module must be coded using the Vehicle Diagnostic Tester.
- Bolt
- 2 Nm
- Only for vehicles with an electric seat belt tensioner
- Expanding Nut
- Clipped in the B-pillar
- Front Seat Belt Guide
- Removing and Installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Place seat belt webbing in the front seat belt guide
- Do not jam or damage the seat belt webbing
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Seat Belt Guide
- Must swing into vertical position or carrier direction by itself after tightening the screw.
- Bolt
- 27 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Seat Belt Height Adjuster
- Removing and Installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
- Seat belt height adjuster must be replaced if the belt tensioner has deployed with the belt buckled
- Connector
- Driver side: for Driver Seat Belt Tensioner Igniter 1 -N153-
- Front passenger side: for Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Connector
- Driver side: for Left Front Seat Belt Tensioner Control Module -J854-
- For Right Front Seat Belt Tensioner Control Module -J855-
- Connector
- Driver side: for Driver Seat Belt Tensioner Igniter 1 -N153-
- Front passenger side: for Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Automatic Belt Retractor
- Vehicles without an electric seat belt tensioner.
- Driver side: with Driver Seat Belt Tensioner Igniter 1 -N153-
- Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Stop Sleeves
- Only for A3 Sportback
