Front Belt Anchor, Removing And Installing, Sedan: Removing

WARNING: This page is about a different variant/trim than selected.

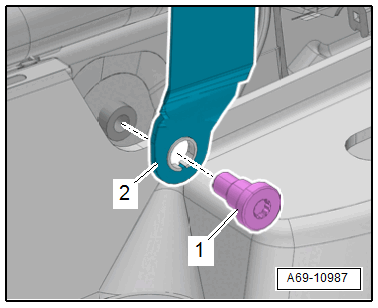

GWWA69-10987Courtesy of AUDI OF AMERICA, LLC

-- Remove the front sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Move the front seat all the way forward and up.

-- Remove the bolt -1-.

-- Remove the bolt with the belt anchor -2-.
