Front Belt Anchor, Removing And Installing, A3: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the sill panel. Refer to SILL PANEL STRIP, REMOVING AND INSTALLING, A3 .
-- Move the front seat all the way forward and up.

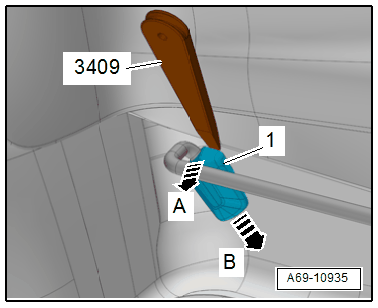

-- Pry off the cap -1- using the :3409 -arrow A-, disengage the belt anchor -arrow B- and remove.

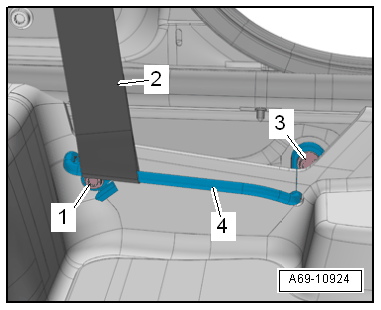

-- Remove the bolts -1 and 3-.
-- Remove the bolt with the belt anchor -4- and the stop sleeves.
-- Remove the belt anchor from the belt loop -2-.
