Front Belt Anchor, Removing And Installing, A3 SPORTBACK: Removing

WARNING: This page is about a different variant/trim than selected.

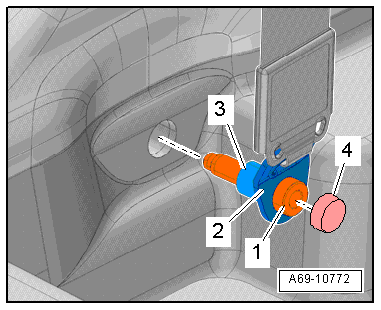

GWWA69-10772Courtesy of AUDI OF AMERICA, LLC

-- Move the front seat all the way forward and up.

-- If equipped: Pry the cap -4- off using a screwdriver.

-- Remove the bolt -1-.

-- Remove the bolt with the belt anchor -2- and the stop sleeves -3-.
