Front Passenger Seat Occupant Detection Sensor -G128-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Remove the front passenger seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the seat pan cover and cushion. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
-- Disconnect the connector for the passenger occupant detection system pressure sensor.

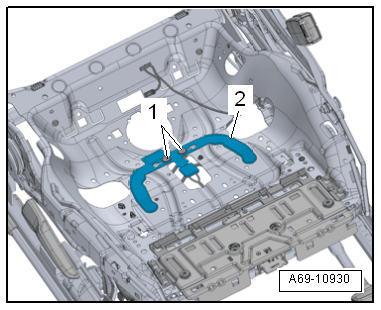

-- Unclip the clips -1- from the seat pan and remove the passenger occupant detection sensor -2-.
