Pedestrian Protection Crash Sensor -G570- / -G571-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

WARNING:

Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .

-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the front noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Vehicle versions with a left and right auxiliary radiator: remove the bumper cover. Refer to RADIATOR FAN -V7-, REMOVING AND INSTALLING [CNSB, CNTC] / RADIATOR FAN -V7- AND RADIATOR FAN 2 -V177-, REMOVING AND INSTALLING [CRUA, DEJA] / AUXILIARY RADIATOR, REMOVING AND INSTALLING [CNSB, CNTC, CYFB] .

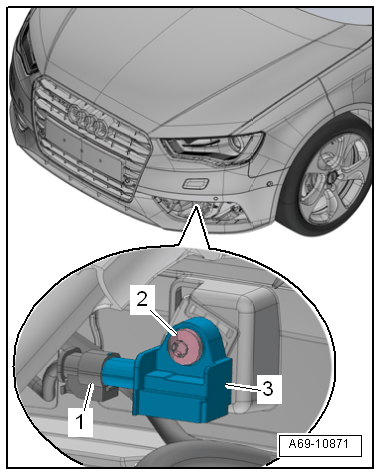

-- Remove the bolt -2- and remove the crash sensor -3- for pedestrian protection from the bumper.

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.

-- Disconnect the connector -1-.

-- To do this pull out the connector lock -2-, push down -arrow-, and disconnect the connector -1- on the crash sensor.

Courtesy of AUDI OF AMERICA, LLC
