Overview - Pedestrian Protection, Vehicles With 3 Sensors Through My 2016

Courtesy of AUDI OF AMERICA, LLC

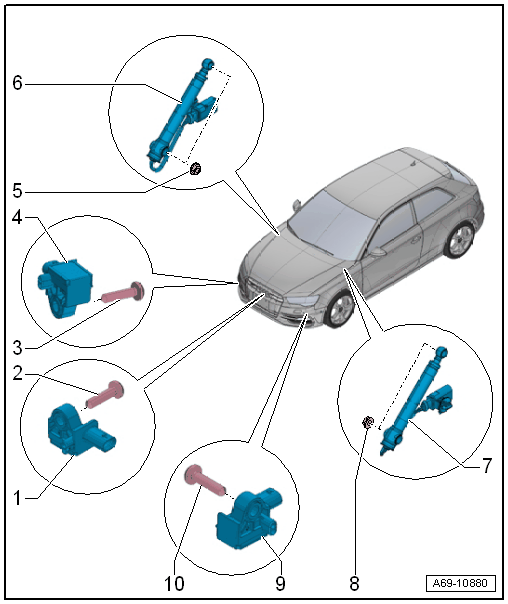

1. Pedestrian Protection Center Crash Sensor -G693-
   • Installation location: in the center of the vehicle on the bumper cover.
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION CENTER CRASH SENSOR -G693-, REMOVING AND INSTALLING .
2. Bolt
   • 6 Nm
3. Bolt
   • 6 Nm
4. Front Passenger Side Pedestrian Protection Crash Sensor -G571-
   • Installation location: on the bumper cover
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION CRASH SENSOR -G570- / -G571-, REMOVING AND INSTALLING .
5. Nut/Clip
   • 8 Nm
   • Depending on the version: either 2 nuts or nut and clip
6. Pedestrian Protection Trigger 2 -G599-
   • Triggered Pedestrian Protection, Resetting. Refer to HINGE, RESETTING
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION TRIGGER 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 -G599-, REMOVING AND INSTALLING .
7. Pedestrian Protection Trigger 1 -G598-
   • Triggered Pedestrian Protection, Resetting. Refer to HINGE, RESETTING
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION TRIGGER 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 -G599-, REMOVING AND INSTALLING .
8. Nut/Clip
   • 8 Nm
   • Depending on the version: either 2 nuts or nut and clip
9. Driver Side Pedestrian Protection Crash Sensor -G570-
   • Installation location: on the bumper cover
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION CRASH SENSOR -G570- / -G571-, REMOVING AND INSTALLING .
10. Bolt
    • 6 Nm
