Overview - Pedestrian Protection, Vehicles With 2 Sensors And Pressure Sensors Through My 2016

Courtesy of AUDI OF AMERICA, LLC

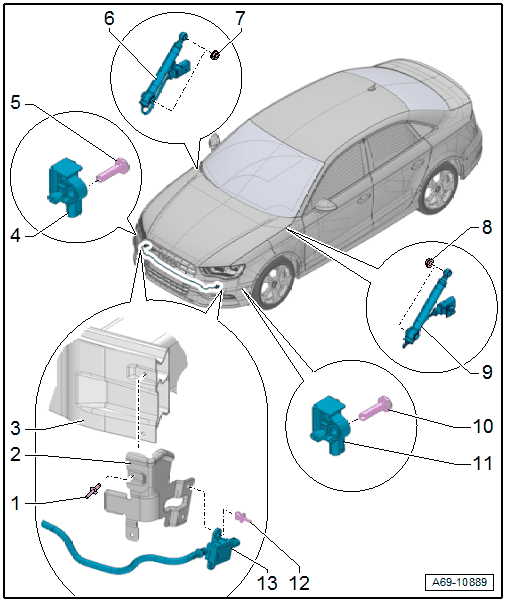

1. Rivet
   • Quantity: 4
2. Crash Sensor Bracket
   • Quantity: 2
   • Riveted with the impact member
   • Replace any deformed bracket with the crash sensor.
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION CRASH SENSOR BRACKET, REMOVING AND INSTALLING .
3. Impact Member
   • Replace a visibly deformed impact member with the crash sensor
4. Front Passenger Side Pedestrian Protection Crash Sensor -G571-
   • Installation location: on the bumper cover
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION CRASH SENSOR -G570- / -G571-, REMOVING AND INSTALLING .
5. Bolt
   • 6 Nm
6. Pedestrian Protection Trigger 2 -G599-
   • Triggered Pedestrian Protection, Resetting. Refer to HINGE, RESETTING
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION TRIGGER 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 -G599-, REMOVING AND INSTALLING .
7. Nut/Clip
   • 8 Nm
   • 1 nut and 1 clip
8. Nut/Clip
   • 8 Nm
   • 1 nut and 1 clip
9. Pedestrian Protection Trigger 1 -G598-
   • Triggered Pedestrian Protection, Resetting. Refer to HINGE, RESETTING
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION TRIGGER 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 -G599-, REMOVING AND INSTALLING .
10. Bolt
    • 6 Nm
11. Driver Side Pedestrian Protection Crash Sensor -G570-
    • Installation location: on the bumper cover
    • Removing and Installing. Refer to PEDESTRIAN PROTECTION CRASH SENSOR -G570- / -G571-, REMOVING AND INSTALLING .
12. Expanding Rivet
    • Quantity: 4
13. Driver Side Pedestrian Protection Crash Sensor 2 -G851- and Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-
    • Sensor unit for the pressure-based crash sensor
    • Must be replaced when
      • The molded foam part is visibly damaged.
      • The impact member is visibly deformed.
      • The bracket is deformed.
      • The pressure hose is damaged.
    • Installed location: on the impact member
    • Cannot be disassembled; the Driver Side Pedestrian Protection Crash Sensor 2 -G851-, the Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852- and the pressure hose are one unit.
    • Place the pressure hose in the groove on the bumper molded foam part.
    • Installed location of the pressure hose: in the center of the bumper molded foam part, the projection is the same on both the left and right.
    • Do not kink or squeeze the pressure hose.
    • Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SIDE PEDESTRIAN PROTECTION CRASH SENSOR 2 -G851- AND -G852-, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2016 .
