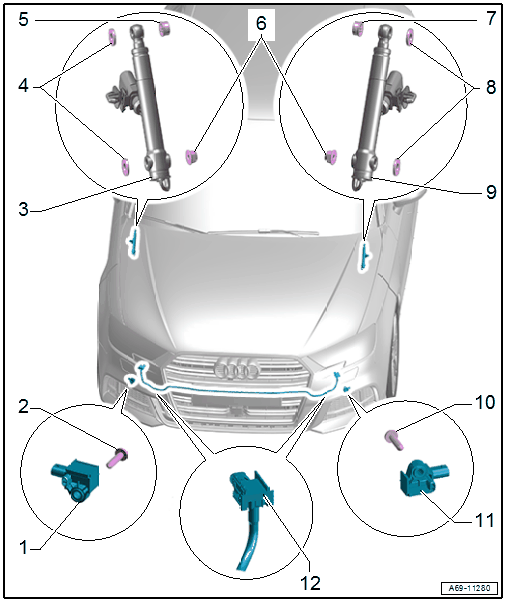

Overview - Pedestrian Protection, Vehicles With 2 Sensors And Pressure Sensors From My 2017

Courtesy of AUDI OF AMERICA, LLC

1. Front Passenger Side Pedestrian Protection Crash Sensor -G571-
   • Installation location: on the bumper cover
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION CRASH SENSOR -G570- / -G571-, REMOVING AND INSTALLING .
2. Bolt
   • 6 Nm
3. Pedestrian Protection Trigger 2 -G599-
   • Triggered Pedestrian Protection, Resetting. Refer to HINGE, RESETTING
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION TRIGGER 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 -G599-, REMOVING AND INSTALLING .
4. Seals
5. Clip
6. Nut
   • 8 Nm
7. Clip
8. Seals
9. Pedestrian Protection Trigger 1 -G598-
   • Triggered Pedestrian Protection, Resetting. Refer to HINGE, RESETTING
   • Removing and Installing. Refer to PEDESTRIAN PROTECTION TRIGGER 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 -G599-, REMOVING AND INSTALLING .
10. Bolt
    • 6 Nm
11. Driver Side Pedestrian Protection Crash Sensor -G570-
    • Installation location: on the bumper cover
    • Removing and Installing. Refer to PEDESTRIAN PROTECTION CRASH SENSOR -G570- / -G571-, REMOVING AND INSTALLING .
12. Driver Side Pedestrian Protection Crash Sensor 2 -G851- /Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-
    • Component location: in the molded foam part on the impact member
    • Unit with pressure hose; if faulty, replace with molded foam part
    • Must be replaced when
      • The molded foam part is visibly damaged.
      • The impact member is visibly deformed.
      • The bumper cover is deformed.
      • The pressure hose is damaged.
    • Place the pressure hose evenly into the molded foam part groove, starting from the outside and working inward
    • Do not kink, pull or squeeze the pressure hose.
    • Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SIDE PEDESTRIAN PROTECTION CRASH SENSOR 2 -G851- AND -G852-, REMOVING AND INSTALLING, VEHICLES FROM MY 2017 .
