Overview - Front Passenger Knee Airbag

WARNING: This page is about a different variant/trim than selected.

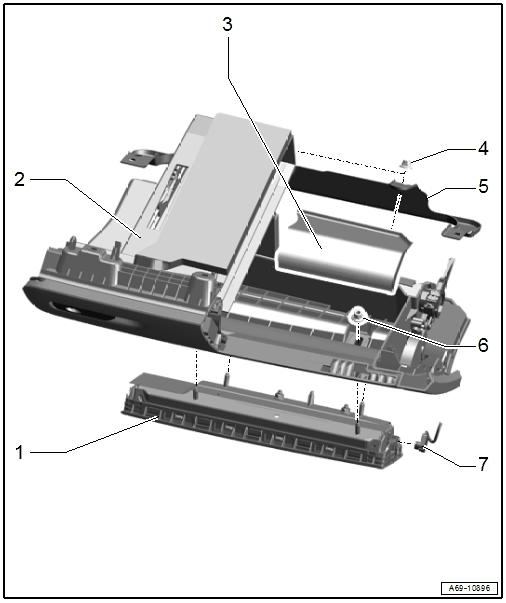

Fig 1: Exploded View Of Passenger Side Knee Airbag

Courtesy of AUDI OF AMERICA, LLC

Front Passenger Knee Airbag Igniter -N296-
- Removing and Installing. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .
  CAUTION:
  There is a risk of damaging the surface of the knee airbag from mechanical stress.
  - After completing a procedure, perform a visual inspection to make sure that the surface of the knee airbag is not damaged.
Glove Compartment
- Removing and Installing. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
Liner Mat
- For the glove compartment
Nut
- 8 Nm
- Quantity: 2
- Replace after removing.
Bracket
- For the knee airbag
  CAUTION:
  There is a risk of malfunctions do to a faulty ground connection.
  - The counter threaded and contact surface must be free of paint, coating, and corrosion, the threaded connection serves as the ground connection for the knee airbag.
Nut
- 8 Nm
- Quantity: 2
- Replace after removing.
Connector
- For Front Passenger Knee Airbag Igniter -N296-
