Overview - Front Passenger Airbag, Market-Specific
WARNING: This page is about a different variant/trim than selected.

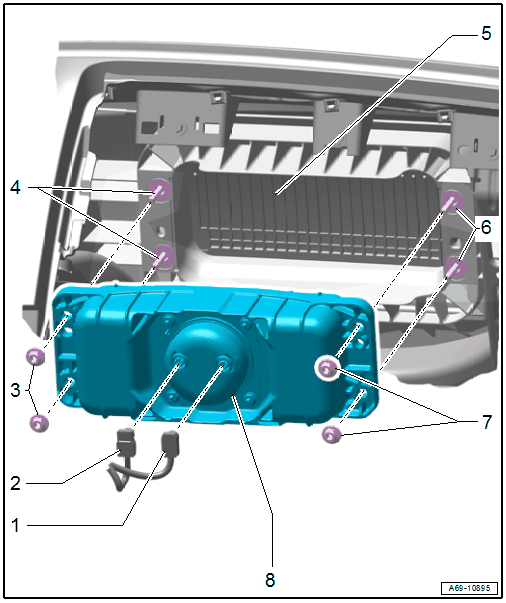

- Connector
- for Front Passenger Airbag Igniter 2 -N132-
- Connector
- For Front Passenger Airbag Igniter 1 -N131-
- Nut
- 8 Nm
- Quantity: 2
- Replace after removing.
- Threaded Pins
- For the airbagCAUTION:
There is a risk of malfunctions do to a faulty ground connection.
- The threaded pins and contact surface must be free of paint, coating, and corrosion, the threaded connection serves as the ground connection for the airbag.
- Check that the threaded bushings are seated securely before installing the airbag CHECK THE THREADED BUSHINGS -1 AND 2- ARE SEATED CORRECTLY ON THE AIRBAG PINS: .
- For the airbag
- Instrument Panel
- Threaded Pins
- for the airbagCAUTION:
There is a risk of malfunctions do to a faulty ground connection.
- The threaded pins and contact surface must be free of paint, coating, and corrosion, the threaded connection serves as the ground connection for the airbag.
- Check that the threaded bushings are seated securely before installing the airbag CHECK THE THREADED BUSHINGS -1 AND 2- ARE SEATED CORRECTLY ON THE AIRBAG PINS: .
- for the airbag
- Nut
- 8 Nm
- Quantity: 2
- Replace after removing.
- Front Passenger Airbag
- with the Front Passenger Airbag Igniter 1 -N131- and Front Passenger Airbag Igniter 2 -N132-WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Note the allocation of the airbag unit to the instrument panel.
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
- with the Front Passenger Airbag Igniter 1 -N131- and Front Passenger Airbag Igniter 2 -N132-
