Overview - Driver Side Airbag, Vehicles From My 2017

WARNING: This page is about a different variant/trim than selected.

NOTE:

The Round Airbag Unit Is Shown.

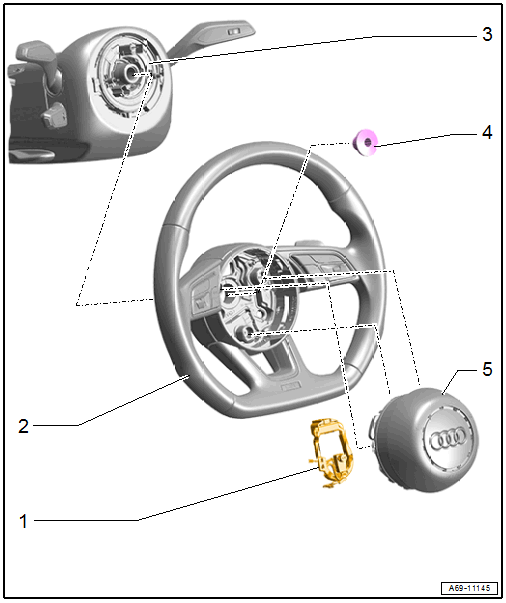

Fig 1: Exploded View Of Driver Side Airbag, Vehicles From My 2017

Courtesy of AUDI OF AMERICA, LLC

Wiring Harness
- For the Driver Airbag Igniter -N95-
- Replacing. Refer to AIRBAG CONNECTOR, REPLACING .
Steering Wheel
- Overview. Refer to STEERING WHEEL, REMOVING AND INSTALLING / OVERVIEW - STEERING WHEEL .
Steering Column Electronics Control Module -J527-
- Overview. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE, WITH ELECTRONIC IGNITION SWITCH .
Bolt
- Tightening specification. Refer to STEERING WHEEL, REMOVING AND INSTALLING / OVERVIEW - STEERING WHEEL .
Driver Side Airbag
- With Driver Airbag Igniter -N95-
  WARNING:
  Risk of injury due to involuntary deployment.
  - Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Use a T25 TORX^® screwdriver, approximately 100 mm long
- Removing and Installing. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING, VEHICLES FROM MY 2017 .
