Airbag Connector, Replacing: Removing
Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
-- Remove the driver side airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Vehicles through MY 2016:
Risk of injury due to involuntary deployment.
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
- To prevent electrostatic charge, the technician must not leave the vehicle during the procedure.

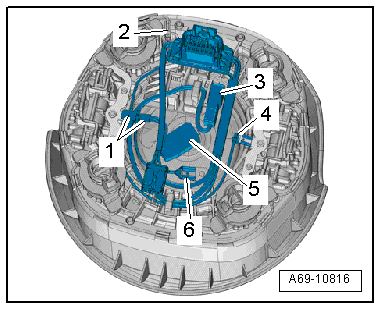

-- Disconnect the connectors -1, 2, 4 and 6- by releasing the tabs.
-- Disconnect the connector -3- from the adapter and -5- for the Driver Airbag Igniter -N95-.
-- To do so, release the connector lock -2- with a small screwdriver -arrow- and disconnect the connector -1-.
-- Disengage and remove the wiring harness on the brackets.
Vehicles from MY 2017:
Risk of injury due to involuntary deployment.
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
- To prevent electrostatic charge, the technician must not leave the vehicle during the procedure.

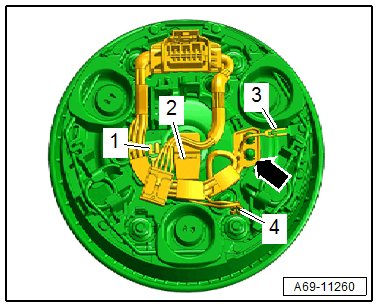

-- Disconnect the connectors -1, 3 and 4- by releasing the retaining tabs.
-- Unclip the wiring harness from the mounts -arrow-.
-- Disconnect the connector -2- for the Driver Airbag Igniter -N95-.
-- To do so, release the connector lock -2- with a small screwdriver -arrow- and disconnect the connector -1-.
