Front Child Seat Anchor, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Move the passenger seat all the way forward/up.
-- Fold the backrest forward or move forward until stop.

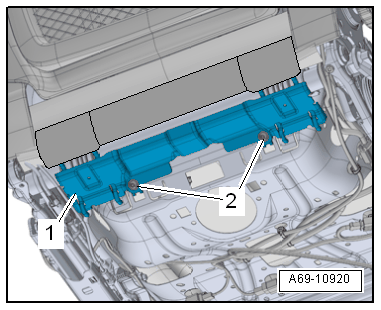

-- Remove the bolts -2-.
-- Remove the child seat anchor -1- with the cover rearward from the seat pan.

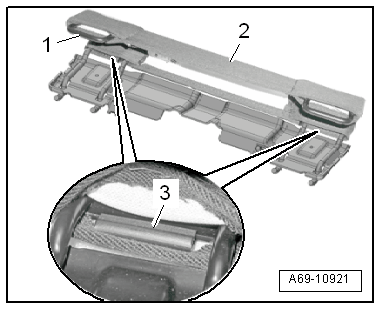

-- Remove the cover -2- from the child seat anchor -1-, to do this disengage the left and right piping -3-.
