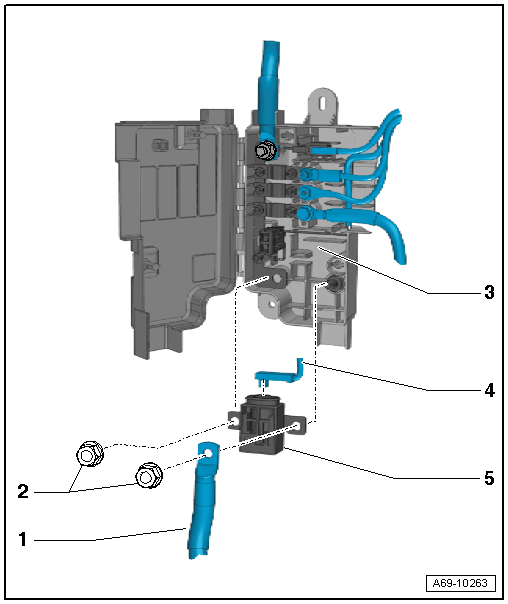

Overview - Battery Interrupt Igniter
WARNING: This page is about a different variant/trim than selected.
- Positive wire
- To the engine
- Nuts
18 Nm
- Main Fuse Box in Luggage Compartment
- Component location: in the luggage compartment main fuse box (under the molded insert for the tool box)
- Removing and installing. Refer to RELAY CARRIERS, FUSE PANELS AND E-BOXES
- Connector
- For the Battery Interrupt Igniter -N253-
- Battery Interrupt Igniter -N253-
- Removing and Installing. Refer to BATTERY INTERRUPT IGNITER, REMOVING AND INSTALLING .
