Steering Wheel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Position the steering wheel as far upward as possible using the full range of the steering column adjuster.
-- Remove the airbag unit. Refer to DRIVER SIDE AIRBAG .
NOTE:
Removal and installation of steering wheel must take place in center position (wheels in straight-ahead position).
-- Straighten the wheels.

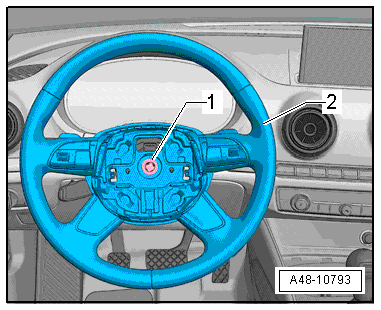

-- Remove the bolt -1-.
-- Mark position of steering wheel/column with a felt-tip pen.
-- Remove steering wheel -2- from steering column.
